I’ve seen so many 10" servers that look amazing from the front and very polished, but then having a rats nest of cables and a mess at the back.
After 62 iterations and many 3D prints, blood, sweat, profanity and tears. I my design and implementation is finally done.
I used Hexagons where possible, because as you know, Hexagons are the bestagons
This is Before:

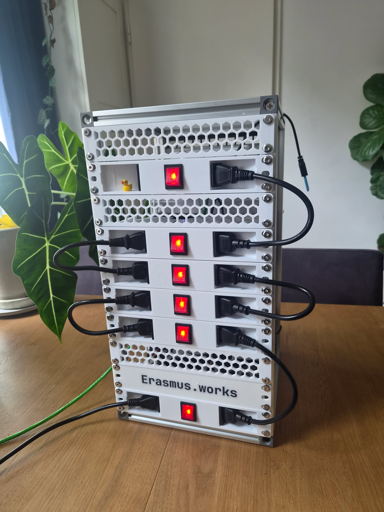

And the After:
The ducky adds 200MHz
The front of my mini-rack is actually still somewhat of a mess, I thought I’d focus on the back first.
I’ve published it in excruciating detail on my GitHub Leave a Star if you like what you see.
I self host a bunch of stuff on here to get away from Big-Tech, and because I find it fun. For a lot more details see https://erasmus.works/
It always bothered me the the fronts of racs are modular, but not the backs, this solves that
If you have any questions feel free to ask, hopefully this helps other clear up their rats nests.
